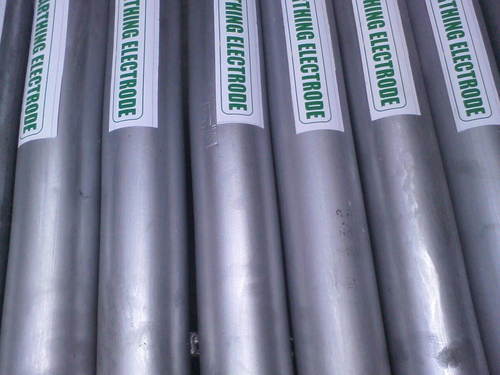

Chemical Earthing

Get a Price/Quote

MOQ : as per customer requirement Unit

Chemical Earthing Specification

Operating Temperature
-10C to 60C

Connector Type
Copper Strip / GI Strip / Clamp

IP Rating
IP65

Feature
Maintenance Free / Low Resistance / Long Life

Mounting Type
Underground / Earth Pit

Shape
Cylindrical

Efficiency
High

Humidity %
Up to 95%

Surface Finish
Hot Dip Galvanized / Polished

Overheating Protection
YES

Product Type
Chemical Earthing Electrode

Application
Electrical Grounding / Power Distribution / Safety

Protection Level
High corrosion resistance

Frequency (MHz)
50 Hz

Rated Voltage
220-440 V

Energy Consumption
Negligible

Output Type
Grounding / Earthing

Color
Metallic / Natural

Dimension (L*W*H)
1000 mm x 75 mm x 75 mm (Standard)

Weight
18-25 kg

Size
Standard: 1m to 3m length; 40 mm to 100 mm diameter

Phase
Single / Three Phase

Material
Galvanized Iron (GI) / Copper

No Of Poles
Single

Connection Type
Terminal Clamp / Bolt Connection

Chemical Earthing Trade Information

Payment Terms
Telegraphic Transfer (T/T)

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Africa, South America, Western Europe, Central America, Asia

Main Domestic Market
All India

About Chemical Earthing

We would like to introduce ourselves as a successful Trader, supplier, exporter, contractor and consultant of Chemical earthing products. These Chemical earthing equipment are required during the installation of electrical appliances to avoid hazardous conditions related to fault currents. The application of these equipment ensures protection against touch voltage and improves the quality of signal by reducing electromagnetic noise. The salient features of our products are their long service period, advanced mechanism and unmatched quality. We are also reckoned for our on time product delivery service.

Chemical Earthing products and accessories:
The Chemical Earthing products offered by us includes :

GI Earthing Electrode

Copper Electrode

Copper Bonded Electrodes

Copper Bonded Rods

Exceptional Grounding Performance

This chemical earthing solution offers low resistance and high discharge capacity, suitable for electrical grounding and power safety. The electrodes filling compound ensures stable ground resistance values even with varying soil conditions, making it highly effective and dependable. Its maintenance-free design and robust corrosion protection provide extended operational life with minimal upkeep.

Universal Application and Easy Installation

Designed for installation in diverse soil environments, these electrodes can be mounted underground or in earth pits using standard terminal or bolt connections. With dimensions tailored for adaptability and service life reaching up to 30 years, this earthing system accommodates single and three-phase operations. The straightforward process and versatile connector types guarantee hassle-free setup and long-term reliability.

Compliance and Safety Assurance

This product conforms to RoHS standards, incorporates overheating protection, and carries an IP65 rating, ensuring reliable usage even under challenging humidity and temperature conditions. Its energy consumption is negligible, securing efficiency in continuous service. The grounding solution supports rated voltages from 220 to 440V and frequencies of 50 Hz, offering optimum safety for your installations.

FAQs of Chemical Earthing:

Q: How is chemical earthing with electrode filling compound installed?

A: Chemical earthing involves placing a cylindrical GI or copper electrode, filled with a special Bentonite, Carbon, and Chemical Mix compound, underground at depths up to 3 meters. The installation uses terminal clamps or bolt connections in a prepared earth pit, ensuring solid contact with the surrounding soil. Professional service providers in India typically handle the process to ensure optimal safety and performance.

Q: What is the main benefit of using chemical earthing over conventional methods?

A: The main benefit is its consistently low earth resistanceless than 1 Ohm (depending on soil conditions)which boosts safety and reliability for electrical grounding. The compound filling sustains stable resistance over time, reduces maintenance needs, and extends service life up to 30 years, even in challenging soil environments.

Q: When should I use chemical earthing electrodes in my facility or project?

A: Chemical earthing electrodes are ideal for installations requiring high safety, minimal maintenance, and dependable earth resistance. They are recommended for electrical grounding in power distribution, substations, telecom towers, industrial plants, and residential buildingsparticularly where soil conditions are variable or inadequate for conventional systems.

Q: Where can chemical earthing electrodes be installed?

A: These electrodes are suitable for all soil types and can be installed underground or inside dedicated earth pits, both indoors and outdoors. Their robust material and corrosion-resistant finish ensure longevity and stable performance, regardless of moisture, humidity (up to 95%), or operating temperature (-10C to 60C).

Q: What is the process involved in chemical earthing installation?

A: The installation process includes digging an earth pit, placing the cylindrical electrode vertically, filling the pit with the chemical mix (Bentonite, Carbon, and Chemical compound), and connecting to electrical systems using copper or GI strips and clamps. The electrode is then securely covered, and periodic inspection is generally not required due to its maintenance-free nature.

Q: How do chemical earthing electrodes support high discharge capacity and protection?

A: With a discharge capacity of up to 30 kA and high corrosion resistance, these electrodes protect electrical systems from faults and surges. Their IP65 rating and overheating protection, combined with a high-quality surface finish, ensure reliable safety performance for both single and three-phase applications.
