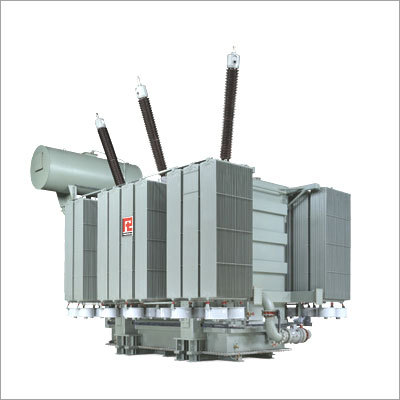

Electrical Transformer

Electrical Transformer
Electrical Transformer
Product Code : LEW-24
Brand Name : Luxmi Electricals & Engineering Works
Product Description
We have secured a distinguished position in the market as a prominent trader, supplier, exporter, contractor and consultant of Transformers. These devices have key role in transforming electrical energy from one circuit board to another without any direct electrical connection. The salient features of our Transformers are their  low electrical losses, superior quality, necessary safety features, advanced components for primary and secondary windings, exceptional insulation properties and long service period. We offer our electrical products after verifying their standard quality by necessary parameters.

Types of Cooling :
  • Oil-cooled type : These are totally maintenance free and can be used both indoor and outdoor. Oil-cooled transformers are available in two versions namely (a) with OFF-load tap changer and (b) with ON-load tap changer.
  • Dry or Cast Resin Type  : These are air-cooled, having an epoxy resin encasing the windings. These are ideal for indoor installation. However, because the molds for casting the coils are available only in fixed sizes, the design of such transformers is less flexible; this may increase the cost of customized dry transformers.

Description Ratings Voltages Standards
Autotransformers Up to 1000 MVA Up to 765 KV ANSI,IEC,NEMA,OTHER
Generator Step-up Transformers Up to 1000 MVA Up to 765 KV ANSI,IEC,IS,BS,NEMA,OTHER
Small Power Transformers Up to 25 MVA Up to 138 KV ANSI,IEC,IS,NEMA,OTHER
Medium Power Transformers Up to 60 MVA Up to 230 KV ANSI,IEC,IS,BS,NEMA
Large Power Transformers Up to 600 MVA Up to 765 KV ANSI,IEC,IS,BS
Regulating Power Transformers Up to 20 MVA Up to 66 KV IEC,OTHER
System / Two Winding Transformers Up to 300 MVA Up to 275 KV IEC,OTHER
Phase-shifting Transformers Up to 500 MVA Up to 525 KV ANSI,IEC
HVDC Converter Transformers Up to 750 MVA Up to 500 kV ANSI
Mobile Transformers Up to 100 MVA Up to 245 KV ANSI,IEC
Shunt Reactors Up to 125 MVA Up to 765 KV ANSI,IEC,IS,OTHER

  • Distribution Transformers : These are generally used in electrical power distribution and transmission and can withstand overloads.
  • Special Transformers :

Description Ratings Voltages Standards
Furnace Transformers Up to 150 MVA Up to 33 kV ANSI,IEC,IS,BS,OTHER
Loco transformers Up to 10 MVA Up to 25 kV IEC,IS
Traction Distribution Transformers 21.6 to 40 MVA 66 to 220 kVA IEC,IS
Trackside Power Transformers Up to 100 MVA Up to 400 kV IEC,IS,OTHER

  • Weatherproof Type : If required by client, we can also provide weather proof enclosure for the transformer.
